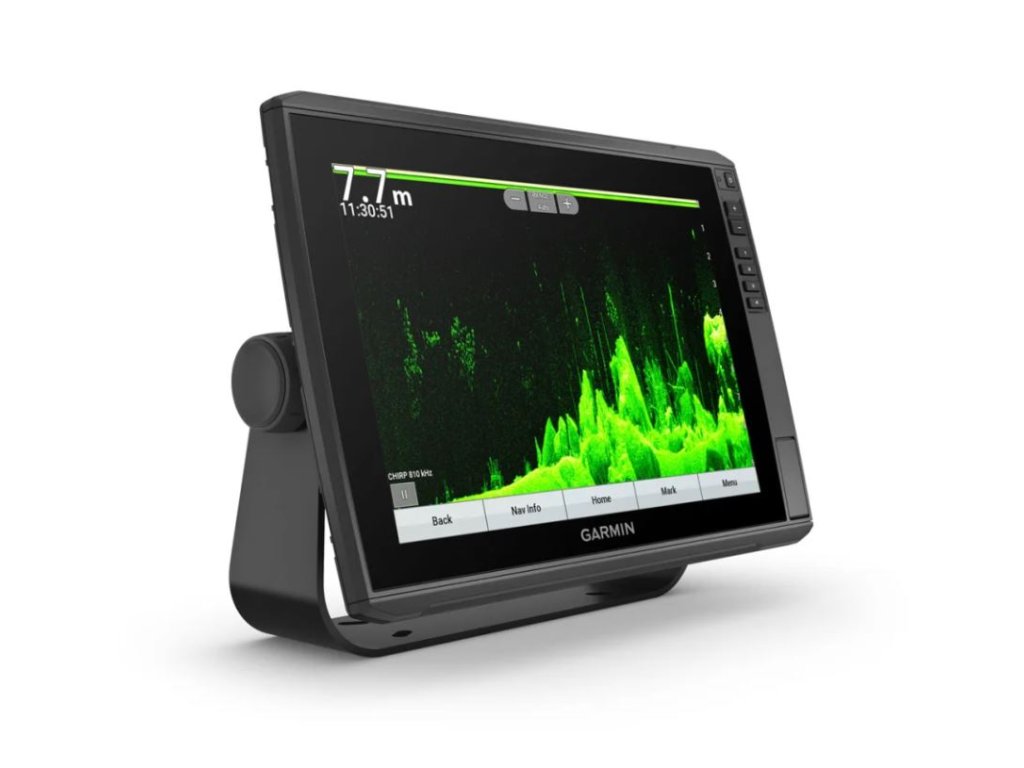

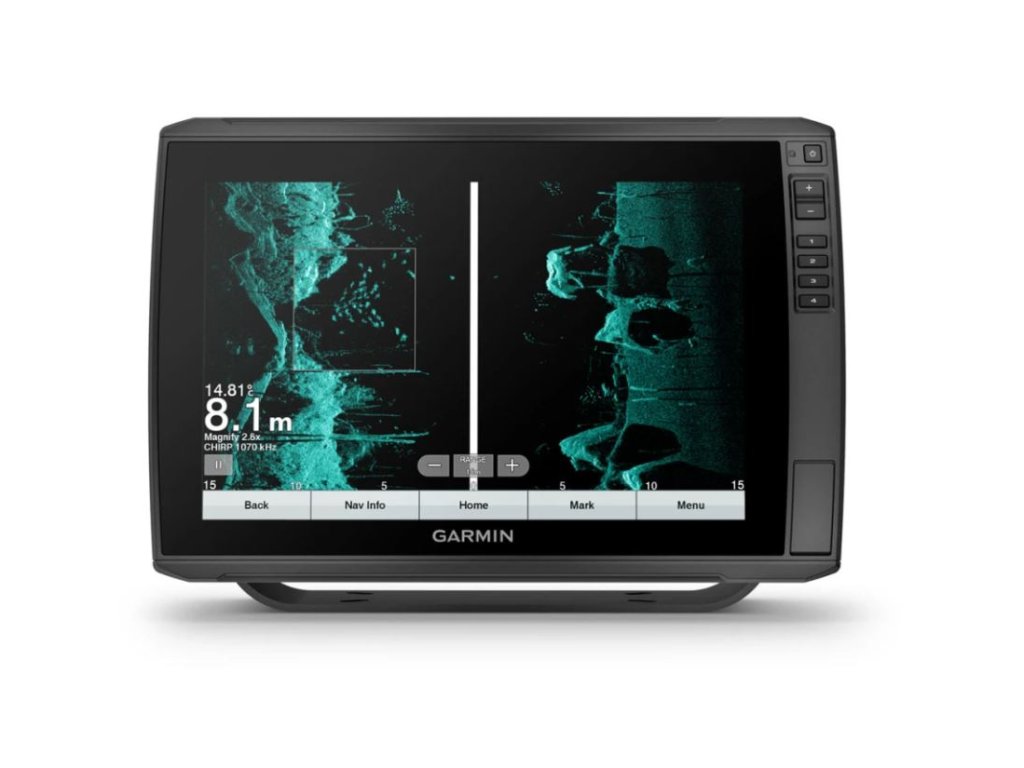

GARMIN ECHOMAP™ Ultra 122sv
CHARTPLOTTER/SONAR COMBINED DEVICE with 12″ colour touch screen diplay and built-in sonar
Premium, combined GPS chartplotter/sonar for demanding fishermen and sailors. It offers a powerful, easy-to-read, ultra-high resolution display and compact size.
Exceptionally detailed view of fish and objects (optional probe required)
Easily interfacable with other devices such as radar, marine audio...
Safe navigation with optional Garmin Navionics+ maps.
Integrated ANT®, Wi-Fi®, Bluetooth® wireless connectivity.
Option to add a switch to control electronic devices on board.
Performance data:
| Display size |
26,1 × 16,3 cm; úhlopříčka 30,7 cm (10,3"× 6,4"; úhlopříčka 12,1") |
| Power input | 10-32 Vdc |
| Display resolution | 1 280 × 800 pixelů |
| GPS | Ano |
| Physical dimensions | 34,1 × 22,9 × 9,8 cm (13,4 × 9,0 × 3,9") |
| Receiver |
10 Hz |
| Degree of watertightness |
IPX7 |
| Weight |
2,5 kg (5,5 libry) |
| Installation options | Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display type | WUXGA, IPS |
Option to add a switch to control electronic devices on board.
LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra supports various Garmin sonars (sold separately), including the unique LiveScope sonar.
INTEGRATED SONAR UHD
Watch the highest resolution images of the ClearVü and SideVü scanning sonars and the incredibly clear image of the wide-angle traditional CHIRP sonar.
Large, clear display
MAPS
Give your chartplotter a new look with optional Garmin Navionics+™ charts or premium Garmin Navionics Vision+™ cartography with integrated coastal and land charts, access to daily updates, Auto Guidance+™ technology2 and more.
RYCHLÉ KRESLENÍ OBRYSŮ
Draw your own fishing maps on the screen with contours of 30 cm (1 foot). You can keep the data for yourself or share it with the Garmin Quickdraw™ community on Garmin Connect™.
NETWORK SUPPORT
If you have multiple compatible ECHOMAP Ultra 10″ and 12″ or ECHOMAP Plus 7″ and 9″ units on board, you can share information between them (e.g. sonar data, user data or charts).
Easy to use
CONNECTION TO THE NMEA 2000® NETWORK
From a single screen, you can connect to compatible autopilots, digital switches, weather forecasts, Fusion-Link™ audio, media, VHF, AIS, engine data or heading sensors (such as SteadyCast™) and more.
ACTIVECAPTAIN
With built-in Wi-Fi®, you can pair the device with a mobile app offering access to OneChart™, smart notifications2, software updates, Garmin QuickDraw community data and more.
OUTBOARD MOTOR COMPATIBILITY FORCE™
Control one of the most powerful and fuel-efficient outboard engines on the market3, follow waypoints, track your route and more from your chartplotter's bright IPS screen.
TAKE THEM WITH YOU
Take care of the safety of the ECHOMAP Ultra. The cables plug into a quick-disconnect hanging bracket so you can easily plug and unplug the module.
Additional parameters
| Category: | Sonars |
|---|---|
| GPS: | Yes |
| Installation options: | Bail, Flat, Flush |
| Receiver: | 10 Hz |
| Display resolution: | 22" |
