RAM® svislá základna s otočným ramenem 6" pro vyhledávače ryb a plotry

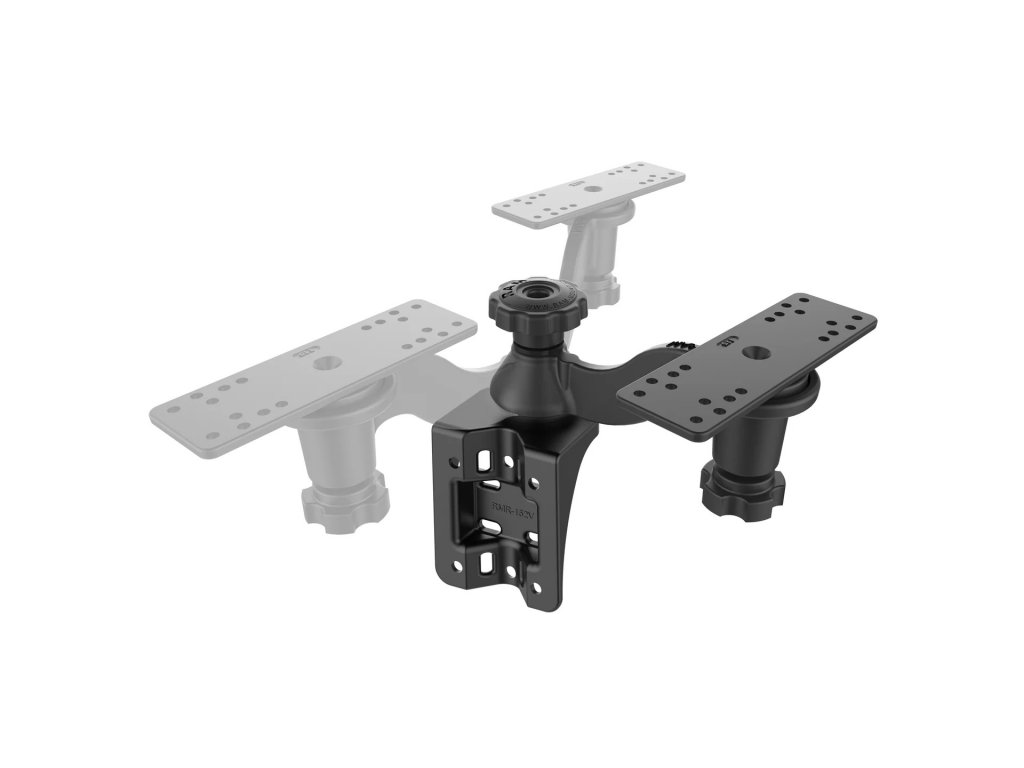

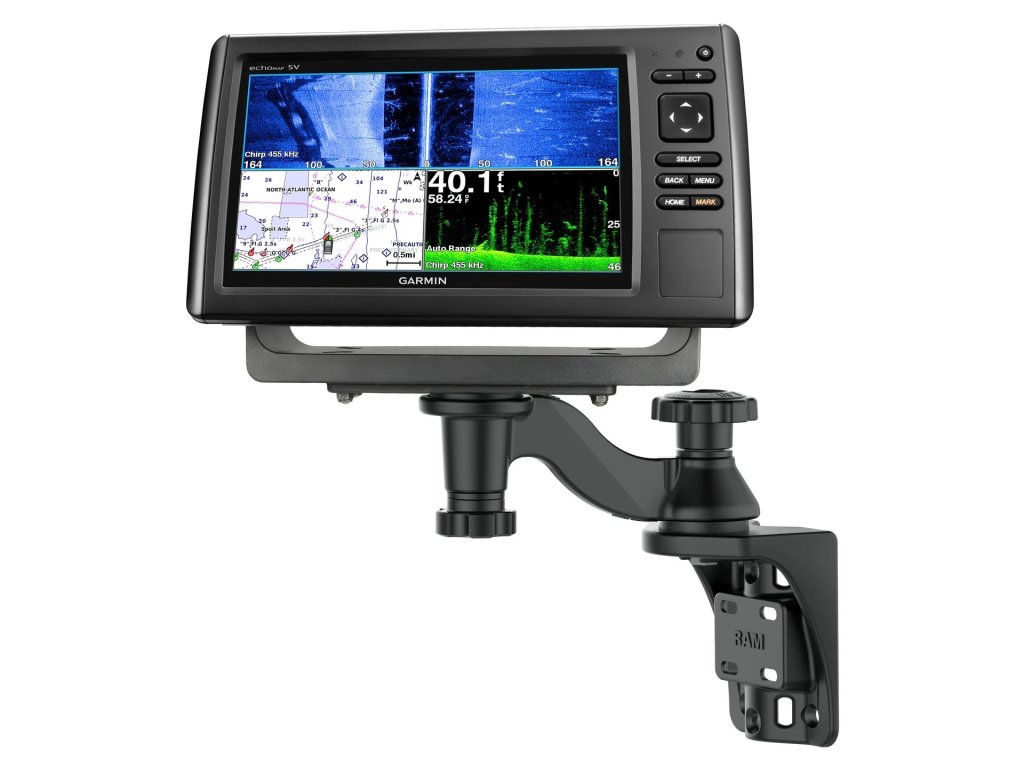

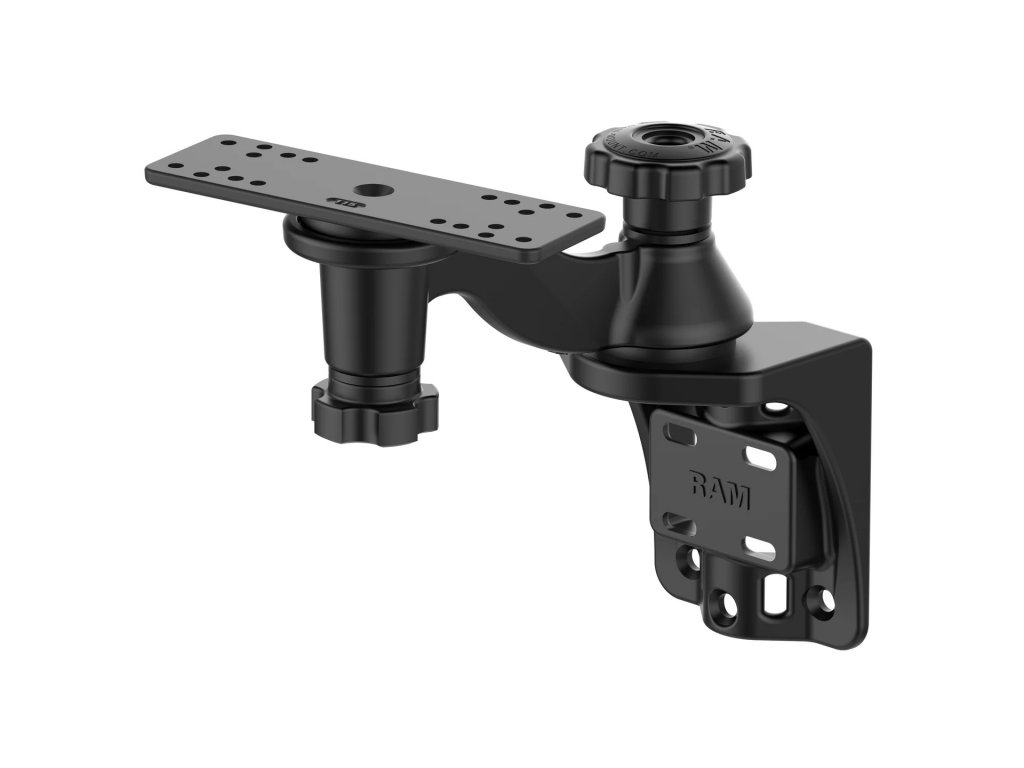

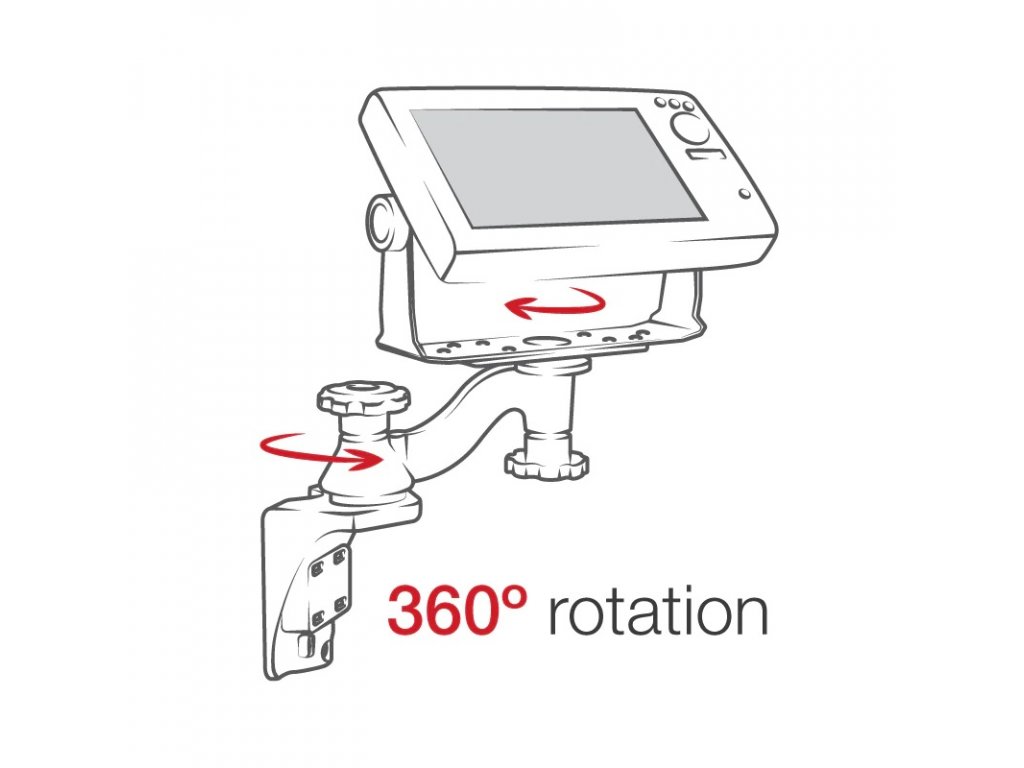

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.
PRODUCT DIMENSIONS
Overall Height: 8.45"
Total Swing Arm Length: 6"
HOLE PATTERN
See Drawing
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.75 lb
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Additional parameters
| Category: | Sonar and rod holders |
|---|---|
| Warranty: | 2 years |
| EAN: | RAM-109VU |
