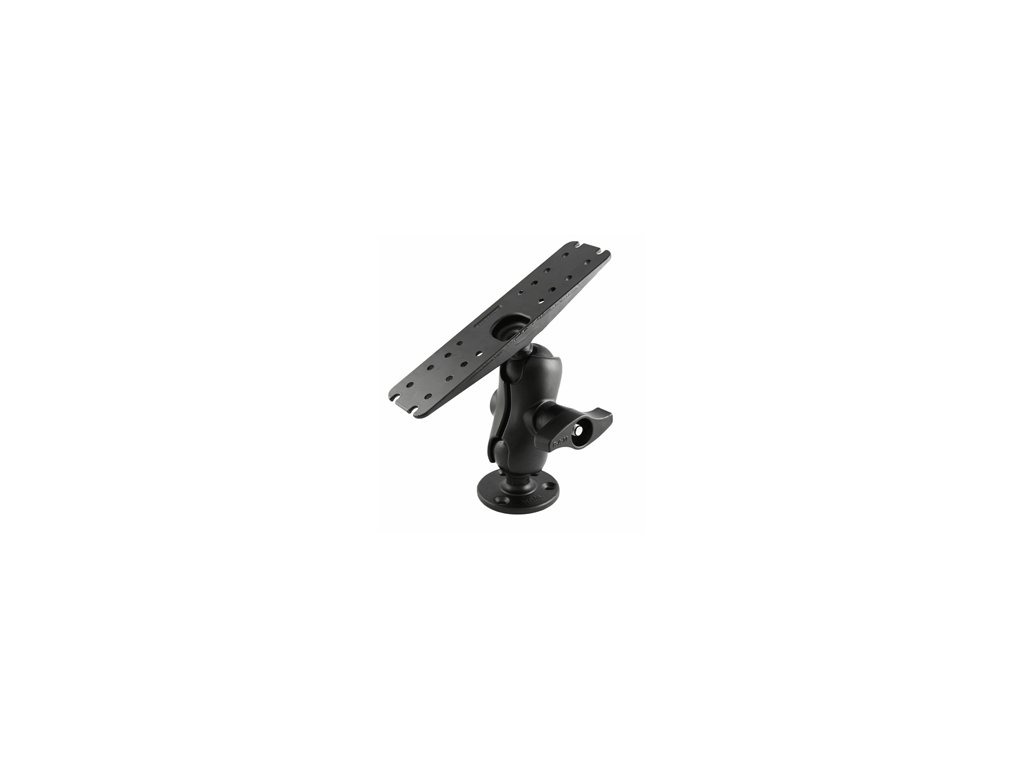

RAM® Large Marine Electronics Mount - D Size Short
FEATURES
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

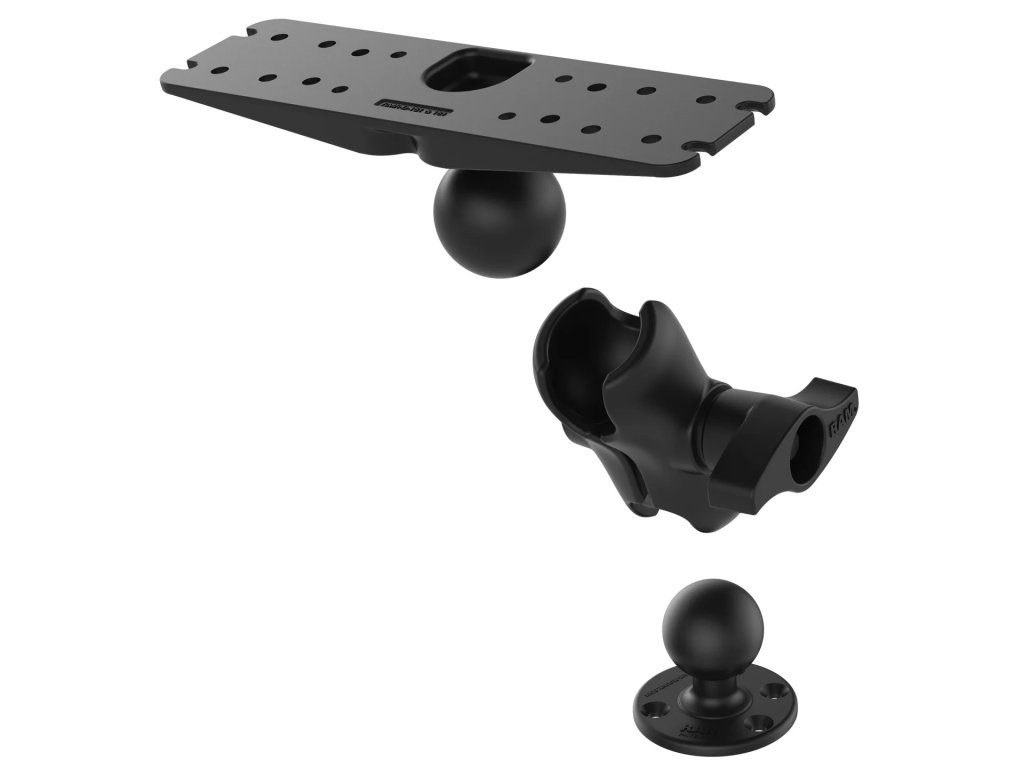

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS

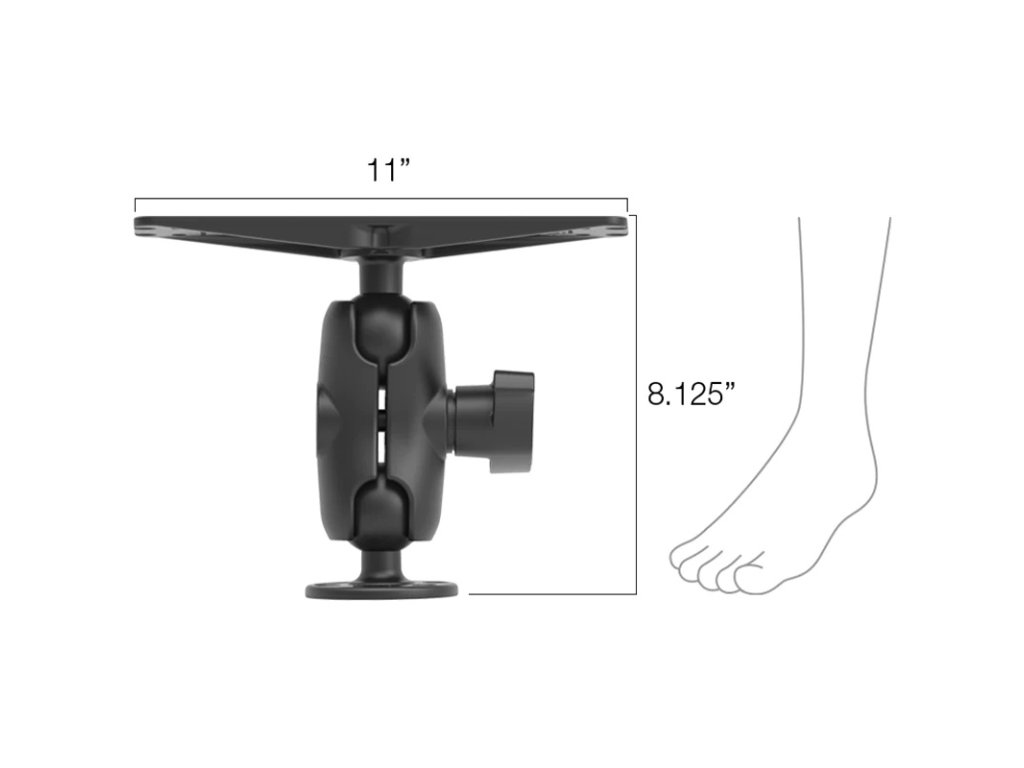

Overall Length: 8.125"
SOCKET TO SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.58 lb
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Additional parameters
| Category: | Sonar and rod holders |
|---|---|
| Warranty: | 2 years |
| EAN: | RAM-D-111U-C |
