RAM® Horizontal 6" Swing Arm Mount for Fishfinders & Plotters
FEATURES

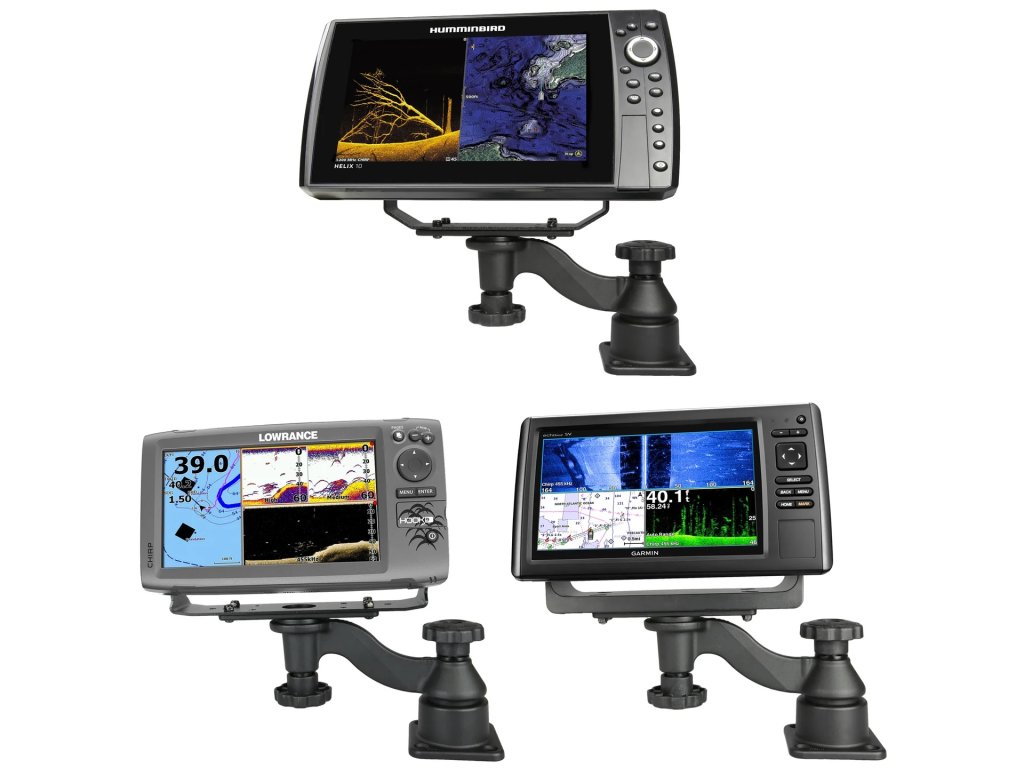

- Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement

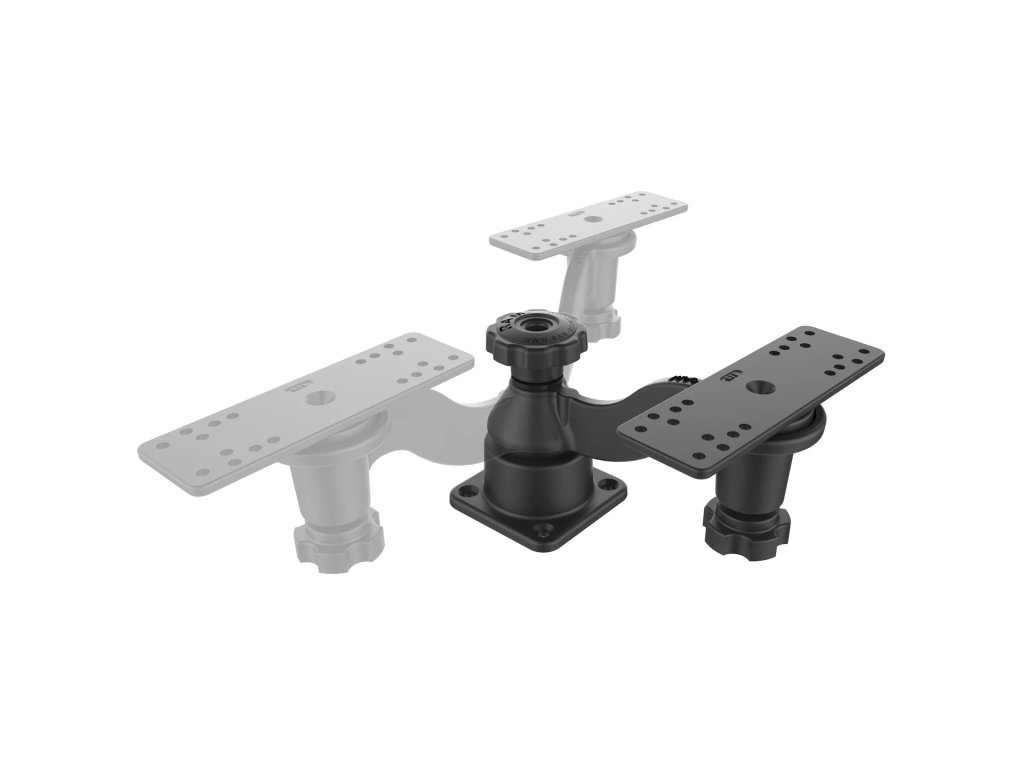

- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty

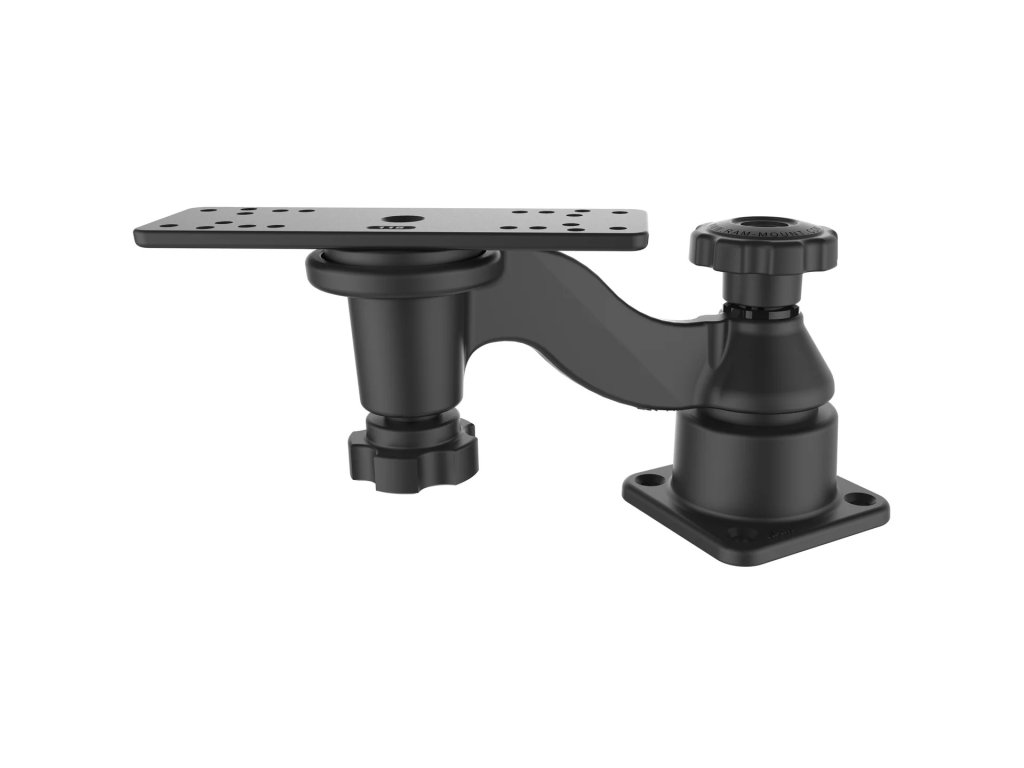

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
PRODUCT DIMENSIONS
Overall Height: 5.41"
Total Swing Arm Length: 6"
HOLE PATTERN
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.21 lb
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device
Additional parameters
| Category: | Sonar and rod holders |
|---|---|
| Warranty: | 2 years |
| EAN: | RAM-109H-1U |
