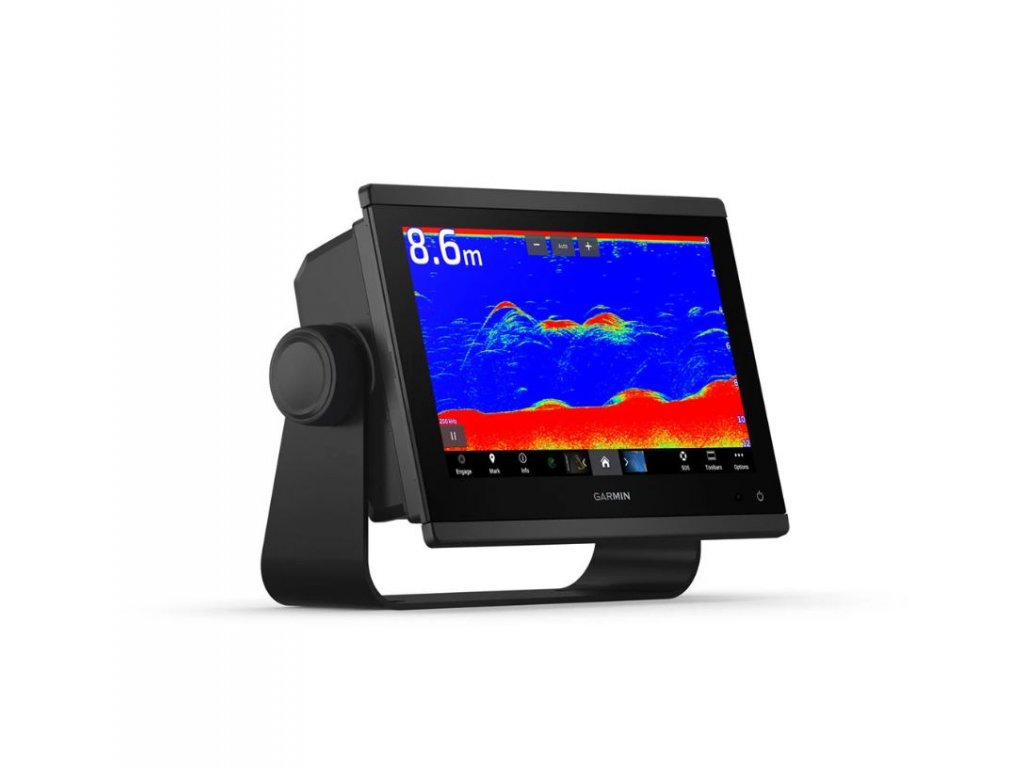

GPSMAP® 923xsv
COMBINED MAP PLOTTER AND SONAR With 9″ colour touch screen diplay and built-in sonar
Premium, combined GPS plotter/sonar for demanding fishermen and sailors. It offers a powerful, brilliantly readable display with extremely high resolution and a compact size suitable for both mounting and carrying.
Full HD touchscreen with a sharp display and great sunlight readability.
Option to connect premium Panoptix Live Scope sonars.
Easily interfacable with other devices such as radar, marine audio...
Expandable with traditional, ClearVu or SideVu sonar probes.
Integrated ANT®, Wi-Fi®, Bluetooth® wireless connectivity.
Option to add a switch to control electronic devices on board.
Performance data:
| Display size |
7,8" × 4,4"; úhlopříčka 9,0" (19,9 × 11,2 cm; úhlopříčka 22,9 cm) |
| Power input | 10-32 Vdc |
| Display resolution | 1920 x 1200 pixels |
| GPS | Yes |
| Physical dimensions | 23,3 × 16,2 × 7,6 cm (9,2" × 6,4" × 3") |
| Receiver |
10 Hz |
| Degree of watertightness |
IPX7 |
| Weight |
3,6 lbs (1,6 kg) |
| Installation options | Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display type | WUXGA, IPS |
Option to add a switch to control electronic devices on board.
Brilliant display
FULL HD IPS TOUCHSCREEN
There is a choice of 10″, 12″ or 16″ display sizes. The displays offer bright resolution, wider viewing angles, superior sharpness, sunlight readability, and even with polarized sunglasses.
MULTIPLE FIXING OPTIONS
You can install the chart plotters directly into the dashboard using multiple displays stacked edge-to-edge or using a single display as the main display. Smaller diagonal displays can still be used as portable for fishing, for example.
GRID™ 20 REMOTE CONTROL
Optionally, the plotters can be supplemented with the GRID 20 remote control for intuitive remote access and control of the entire Garmin marine system.
Great overview of what's going on underwater
SUPPORT FOR CLEARV AND SIDEV SONAR
The chartplotters support connection of 1kW dual-channel traditional sonars with CHIRP technology as well as ClearVü and SideVü scanning sonars (probes must be purchased separately).
PANOPTIX™ SONAR SUPPORT
In addition to traditional sonars, the plotter can also be upgraded with a Panoptix LiveScope™ sonar with real-time display of what's going on in the area below/behind the boat (sonar sold separately).
Takes you safely to your destination and back home
FEATURES FOR SAILBOATS
GARMIN SAILASSIST™ is a great helper for sailboat crews. It allows you to view the race start line, cruising assist, enhanced wind rose, course direction and course line relative to land, wind direction data fields, tide information and more.
POLAR TABLES FOR SAILING
The polar table lets you see key data, including how fast you should be going at certain wind angles and speeds - so you'll know if you need to adjust your sail settings.
MAPS
Give your chartplotter a new look with optional Garmin Navionics+™ charts or premium Garmin Navionics Vision+™ cartography with integrated coastal and land charts, access to daily updates, Auto Guidance+™ technology2 and more.
Easy connection to yacht GPS watches
GARMIN MARINE NETWORK
If you use multiple Garmin devices on your boat, you can share information between them - such as maps, user data, radar and IP cameras.
NMEA 2000® AND NMEA 0183 NETWORKS
The ability to link multiple standard marine devices using NMEA protocol and display data from them on the plotter screen. Connect to e.g. autopilots, shipboard electronics control, weather information, FUSION-Link™ audio, radar, VHF or AIS.
ACTIVECAPTAIN® APPLICATIONS
With integrated Wi-Fi®, you can connect the plotter to a free mobile app offering access to OneChart™ nautical charts, smart notifications2 , software updates, the Helm app, Garmin QuickDraw™ user charts and more.
BLUETOOTH® AND ANT TECHNOLOGY
Wirelessly connect your favourite devices such as quatix® marine watches, gWind™ Wireless 2 or GNX™ Wind wind sensors or wireless remote controls.
ONEHELM™ FUNCTION
This feature allows you to manage third-party device features and options, such as EmpirBus™ digital switching, on a single screen.
SMARTMODE CONTROL
Smartmode technology provides quick one-touch access to the information you need. It can be used, for example, when pulling into port, where you can control connected sonar, radar, cameras, media and more with one touch.
Additional parameters
| Category: | Sonars |
|---|---|
| GPS: | Yes |
| Installation options: | Bail, Flat, Flush |
| Receiver: | 10 Hz |
| Display resolution: | 9" |
